Home > Product > Touchfly JWS64 industrial motherboard Allwinner A64, quad-core Cortex-A53 64-Bit low-power CPU

JWS64

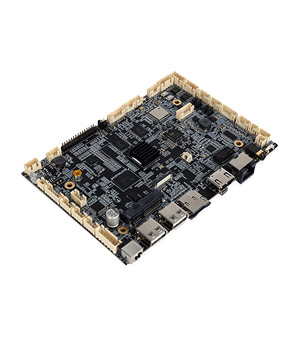

Touchfly industrial motherboard JWS64

Touchfly JWS64 industrial motherboard Allwinner A64, quad-core Cortex-A53 64-Bit low-power CPU multiple COM interfaces.
Manufacturer
Touchfly
Motherboard Model
JWS64
Motherboard Size
100mm x 140mm
Category
Android Industrial Motherboard
CPU
Allwinner A64、Quad-core,1.2GHz
GPU
ARM Mail-400 MP2
Memory
1G/2G(DDR3)
Storage
EMMC 8G(16/32/64G optional)
ROM
2KB EEPROM
Resolution
HDMI Maximum 4K 3840*2160
OS
Android 6.0
Network
Ethernet,WIFI/BT 4.0,Wireless peripheral extension
USB
USB HOST*4,USB A*2,MICRO USB(OTG)*1
Serial Port
232 port*1,TTL/232 switchable port*2
Ethernet
10M/100M/1000M adapt Ethernet
WIFI、BT
Built-in dual frequency WIFI,BT4.0(Optional)
4G
Built-in MINIPCIE 4G module socket
LVDS
LVDS*1,supports single/dual channel 50/60Hz LCD panel
AV Output
Support left and right channel output, built-in dual 4R/20W,8R/10W amplifier

Send RFQ

Motherboard Model: JWS64








    Required fields are marked *, We’ll respond within 12 hours.
    Touchfly JWS3288-i Motherboard

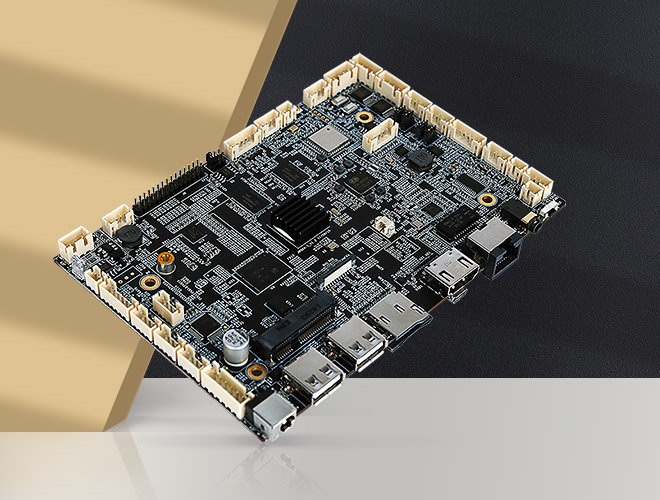

    About JWS64

    Touchfly JWS64 adopts Allwinner A64, Quad-core 64-bit 1.5GHz, equipped with Android 6.0, adopts mali400 MP2 dual-core high-performance GPU, and supports HDMI 4K output
    About JWS64

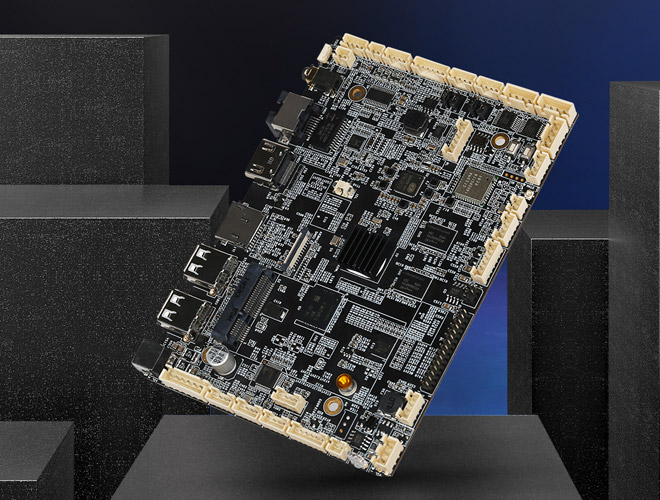

    4K HDMI

    4K HDMI Video Decoding

    4K 3840 x 2160 decoding resolution, EMMC 8G built-in memory, support LCD displays of various LVDS/eDP interfaces and various sizes

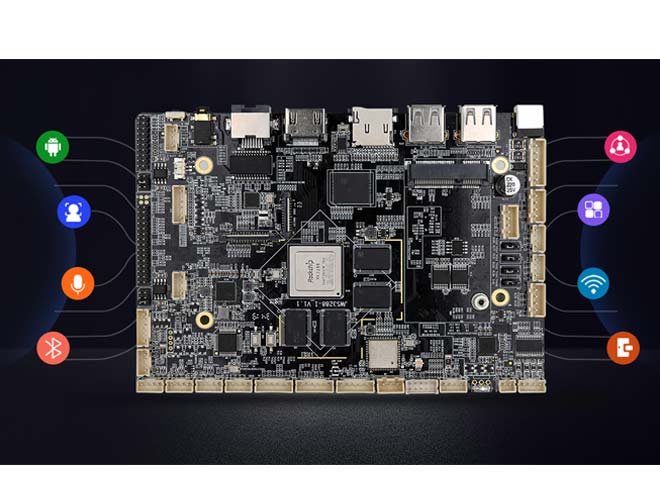

    API interface

    Android system customization, provide API interface debugging code, support APP secondary development.
    Gigabit Ethernet
    Gigabit Adaptive Network Port

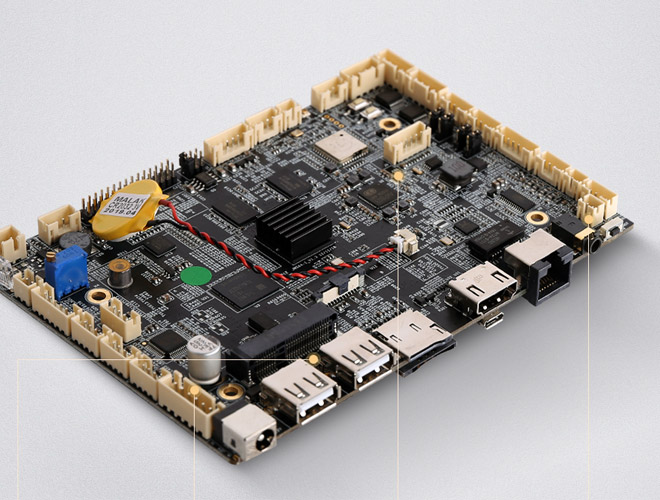

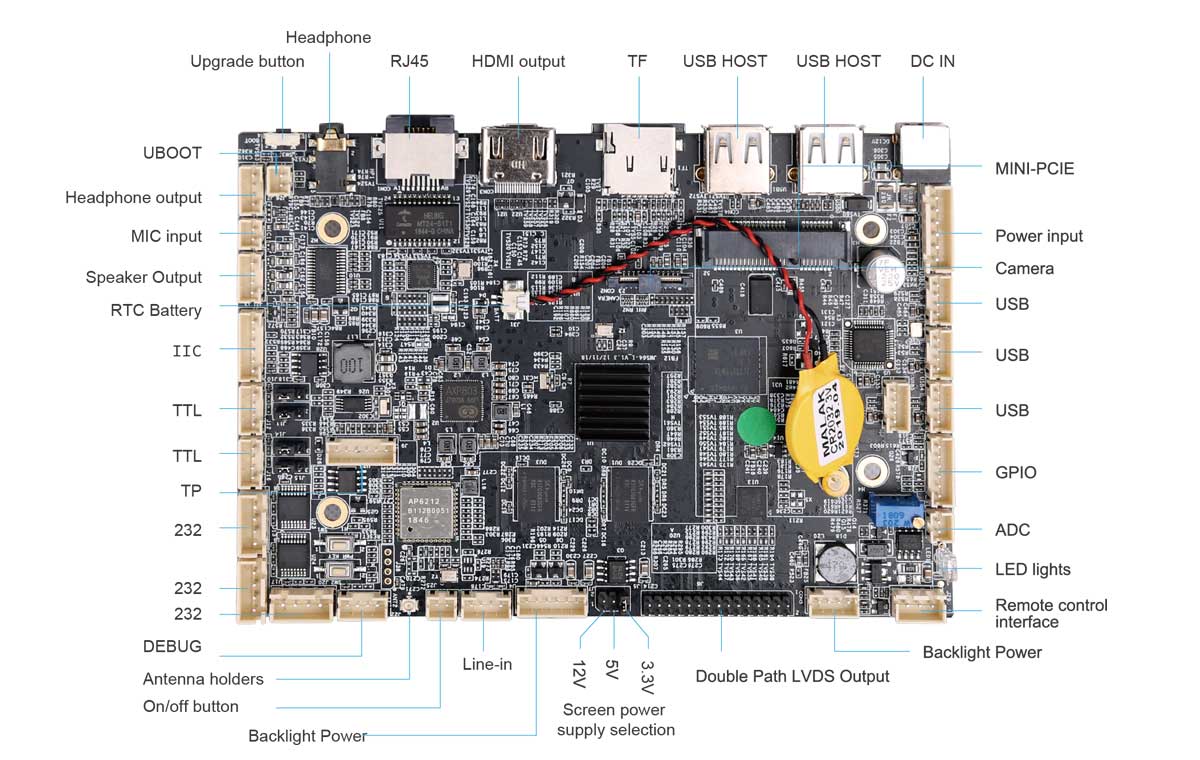

    Support Interface Expansion

    Seven-way USB interface, one-way 232 serial port, two-way TTL/232 serial port, three-way GPIO output.
    Wide Temperature, WidePressure

    Wide Temperature, WidePressure

    2V~36V wide voltage power supply, -20~70℃ to adapt to high temperature difference environment.

    Customer Case

    Touchfly industrial motherboards have served the world top enterprises: SIEMENS, P&G, FOXCONN, KUCA, KFC, HUAWEI, BYD,ZEISS. Touchfly motherboards are widely used by our customers in the fields of industrial touch screen, industrial control all-in-one computers, and industrial manufacturing.

    Touchfly Workshop

    Touchfly has a world-class industrial motherboard production workshop. we adopt dust-free workshops to test every index of the products to ensure the precision and efficiency of the products, so as to provide customers with the highest quality and reliable industrial computer motherboards.
