JWS3399-MAIN-G
Touchfly JWS3399-MAIN-G industrial motherboard RK3399 Dual-core Cortex-A72 Cortex-A53 4G memory Quad-core ARM GPU Android 7.1/9.0.
Manufacturer
Touchfly
Motherboard Model
JWS3399-MAIN-G
Motherboard Size
153.8mm x 106mm
Category
Android Industrial Motherboard
CPU
RK3399 Dual-core Cortex-A72 Cortex-A53 4G memory Quad-core
GPU
Quad-core ARM Mali-T860MP4 GPU
Memory
4G(2G optional)
Storage
EMMC 32G(8/16/64G optional,maximum 64G)
ROM
4KB EEPROM
Resolution
Maximum 3840*2160
OS
Android 7.1/9.0
Network
3G,Ethernet,WiFi/BT4.2,Wireless peripheral extension
USB
USB standard*2,USB interface*5
Serial Port
RS232*2,485*1,TTL*2,DEBUG port*1
SATA
SATA socket*1
WIFI、BT
Built-in d WIFI,BT4.2（Optional）,dual frequency WIFI and dual-antenna supported
3G/4G
Built-in WCDMA,EVDO,unlocked 4G,VolET supported
Ethernet
1000M Ethernet interface*1
LVDS
LVDS*1(single/dual channel),support 50/60Hz LCD panel
eDP
Support Multi-resolution EDP interface LCD panel
HDMI
HDMI*1, support 1080P@60Hz，4kx2k@60Hz output
Send RFQ
Motherboard Model: JWS3399-MAIN-G
Required fields are marked *, We’ll respond within 12 hours.

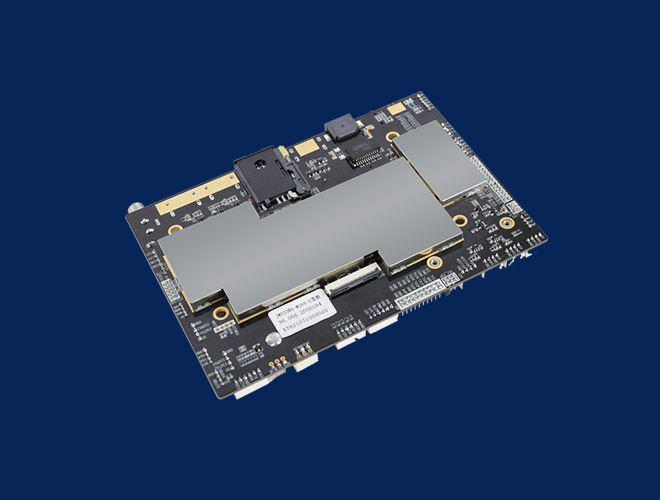

About JWS3399-MAIN-G Motherboard
Touchfly JWS3399-MAIN-G adopts RK3399 dual Cortex-A72 large core + four Cortex-A53 small core 64-bit super CPU, main frequency 1.8GHz, adopts Mali-T860 GPU, supports 4K, H.265 hard decoding, Android7.1/ 9.0 system.
Quad-core Strong Core High-speed Engine
Using RK3399 dual Cortex-A72 large core + four Cortex-A53 small core 64-bit super CPU, main frequency 1.8GHz
High Definition Display
It supports 4K decoding up to 3840×2160, supports LVDS/eDP/HDMI and other LCD displays, cropped screens, and supports dual-screen display.
API interface
Android system customization, provide API interface debugging code, support APP secondary development.
Multiple network interfaces
Multiple network interfaces: 100M, 1000M Ethernet interface, support 5G and 2.4GWIFI, independent dual antenna, built-in PCI-E 3G/4G module interface, support Internet access and calls.

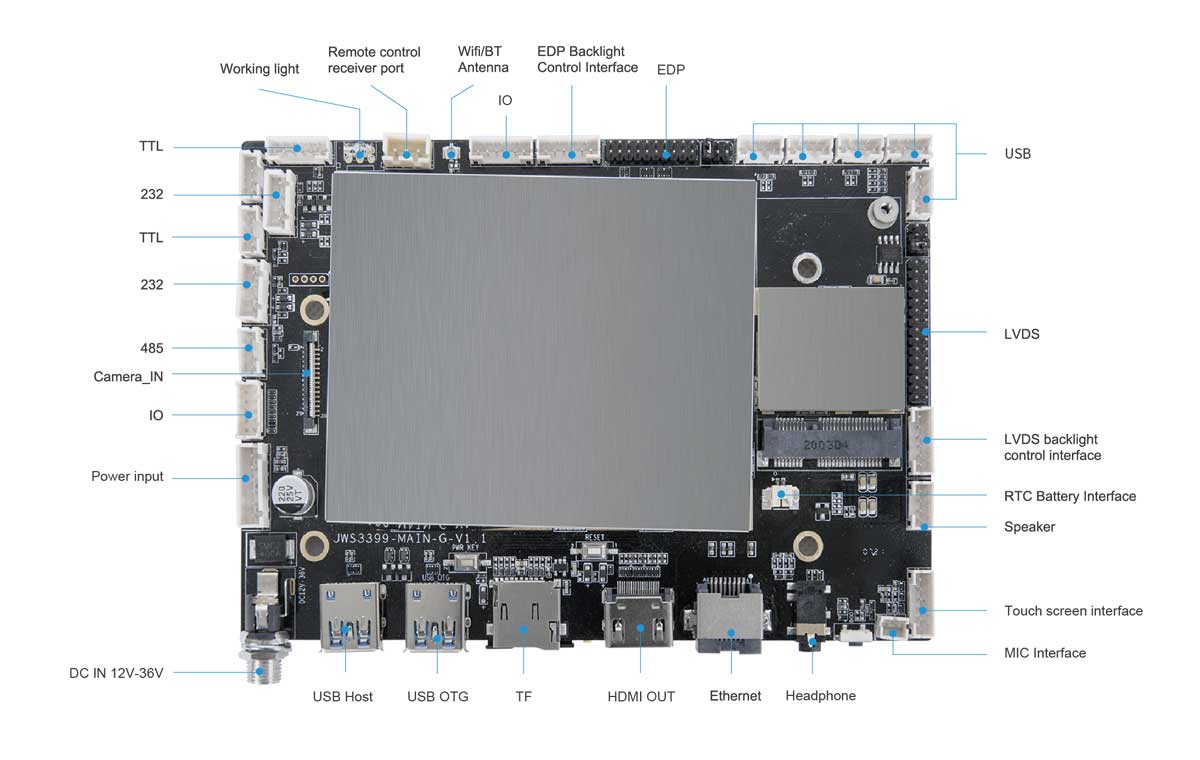

Rich Expansion Interfaces
Rich expansion interfaces: 7 USB interfaces (2 USB standard interfaces, 1 TYPEC, 4 2.0 sockets), 1 485 interface, 4 scalable serial ports (2 TTL (one with hard flow control), 2 RS232), GPIO and ADC interface, which can meet the requirements of various peripherals on the market.
Support More Touch screens
Support a variety of mainstream touch screens It perfectly supports various mainstream touch screens such as infrared, optical, capacitive, resistive, and touch film, and supports HID configuration of drive-free touch screens without debugging.
Multiple Security Protection
Meet wide temperature (-10℃~60℃), wide voltage (DC12V~36V), EMI/EMC level anti-interference, ESD standard anti-static. Independent research and development of motherboards, selected parts, and technical endorsement.
