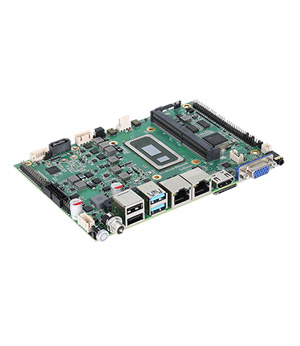

CX-I5 10th Gen
Touchfly CX-I5 10th Gen industrial motherboard Intel® Core™ i5 series 10210U Dual core and four threads 1.6GHz CH7511 2*RJ45 160*110mm.
Manufacturer
Touchfly
Motherboard Model
CX-I5 10th Gen
Dimensions
160mm x 110mm x 27mm
Category
X86 Industrial Motherboard
CPU
Intel® i5 series 10210U Base frequency: 1.6GHZ,Burst frequency: 4.2GHz,dual-core 4threads
Chipset
Intel Bay Trail SOC
Memory
Support DDR4-2133, 2 * SO-DIMM Slot, Up to 64GB
FAN
Silent Fan
SATA
1 * SATA3.0 + 1 * mSATA + 1*M.2
OS Support
Win10 Professional Edition/Win10 Enterprise Edition/win10 Home Edition/Win11 Professional Edition/Windows Server 2019/2016
Ubuntu16.04.7/Ubuntu18.04.6/Ubuntu20.04.3/Ubuntu22.04
Centos7.4/Centos7.8/Centos7.9/Redhat7.4/Debian11.4
Ubuntu16.04.7/Ubuntu18.04.6/Ubuntu20.04.3/Ubuntu22.04
Centos7.4/Centos7.8/Centos7.9/Redhat7.4/Debian11.4
Internet
WIFI,BT: Supported(dual-frequency WIFI with BT);
3G/4G: 1*Mini-PCIE port,4G module optional;
Ethernet: 2 * Realtek PCI-E NIC RTL8111H for 1000Mbps
3G/4G: 1*Mini-PCIE port,4G module optional;
Ethernet: 2 * Realtek PCI-E NIC RTL8111H for 1000Mbps
Display
LVDS： Supported
EDP： Supported(diff-version)
MIPI： Not supported
VGA： Resolution up to 1920*1200@60HZ
HDMI： 1080P@120Hz,4kx2k@60Hz
EDP： Supported(diff-version)
MIPI： Not supported
VGA： Resolution up to 1920*1200@60HZ
HDMI： 1080P@120Hz,4kx2k@60Hz
I/O
USB2.0: 4*(External port*2,internal port*2);
USB3.0: 2*External port;
GPIO: Eight I/O Pins;
232: 6*(a RS232/RS422/RS485 switchable port);
422: 1* RS232/RS422/RS485 switchable port;
485: 1* RS232/RS422/RS485 switchable port
USB3.0: 2*External port;
GPIO: Eight I/O Pins;
232: 6*(a RS232/RS422/RS485 switchable port);
422: 1* RS232/RS422/RS485 switchable port;
485: 1* RS232/RS422/RS485 switchable port
Environment
Operating temperature:-20℃~70℃; Operating humidity:5%~95%
Send RFQ
Motherboard Model: CX-I5 10th Gen
Required fields are marked *, We’ll respond within 12 hours.
About CX-I5 10th Gen
CX-i5 10th Gen motherboard adopts Intel i5 10210U series, the main frequency is up to 2.3GHz, it is a high-speed, with silent fan, the motherboard adopts Intel Bay trail SOC chipset, supports 4K, H.265 hard decoding. It is your best choice for human-computer interaction and industrial control projects.
CX-i5 10th Gen 10210U processor
CX-i5 10th Gen adopts Intel Celeron i5 10210U dual-core four-thread processor, Main frequency up to 2.3GHz, strong performance.
Dual Network Port Design
It adopts RJ45 dual interface design, which can support industrial upper computer and lower computer network connection between.
Anti-electromagnetic interference
Internal anti-interference layout, ESD: 8KV~15KV Prevent damage to components and protect the normal operation of the motherboard.
Anti-jamming Anti-radiation
ESD protection circuit is used to achieve EMI/EMC level anti-interference
Prevent damage to components and protect the normal operation of the motherboard.
Prevent damage to components and protect the normal operation of the motherboard.
Anti-drop Interface Design
Anti-drop Interface Design,Threaded DC2.5 interface, effectively preventing the power cord from loosening and falling off.
Fanless Design
Adopt silent fan design to achieve high-efficiency heat dissipation, quiet and low noise it’s my tenderness to you.
Compact Size, Taking Up Less Space
The size is compact 160*110mm, which is specially designed for industrial scenes, compact motherboard.
Wide Temperature And Wide Pressure Dustproof
2V~36V wide voltage power supply, -20~70℃ to adapt to high temperature difference environment.
