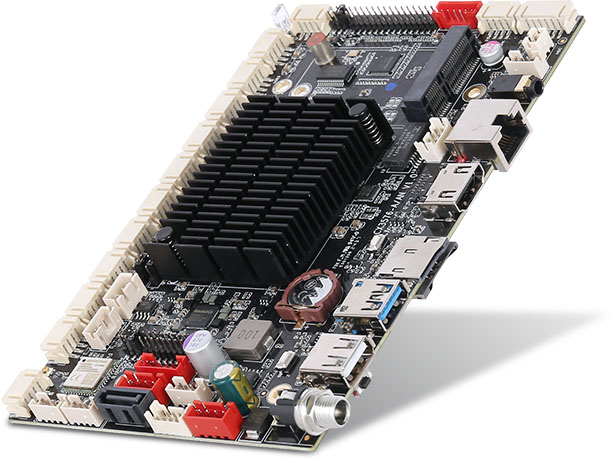

AI Industrial Android Motherboard 6Tops NPU RK3576 8-Core 64bit 4G/Wifi Network Mali G52

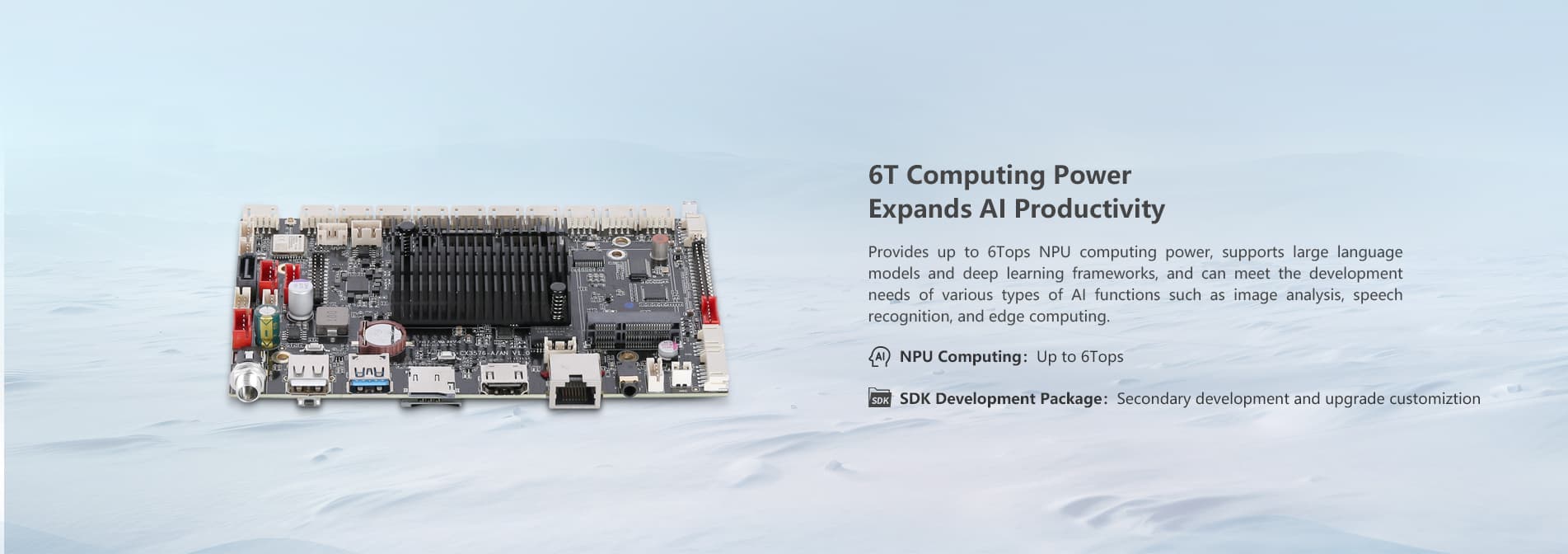

The RK3576 is a high – performance, low – power application processor chip with an advanced 8nm manufacturing process. It features an 8 core, 64 bit core architecture. The four A72 big cores can have a main frequency of up to 2.2GHz, and the four A53 small cores can have a main frequency of up to 1.8GHz. It is equipped with an NPU with 6TOPS of AI computing power, and the GPU uses the ARM Mali G52 MC3
Manufacturer
Touchfly
Motherboard Model
CX3576 -A
Motherboard Size
157mm*100mm*20mm
Category
Android Industrial Motherboard
CPU
RK3567, 8-core CPU processor,2.2GHz
GPU
ARM Mali G52 MC3
Memory
4GB ( 8GB/16GB Optional )
Storage
32GB ( 64GB/128GB/256GB Optional )
ROM
4KB EEPROM
Resolution
Highest support 4096×2160@120Hz
OS
Android14, Linux6.1, Debian12, Ubuntu22.04
Network
4G, Ethernet, support 2.4G/5G dual Wi Fi, support bluetooth 5.3
USB
1*USB3.0 OTG peripheral interface, 1* USB2.0 peripheral interface
Serial Port
6 serial sockets（ 2*RS232,1 pcs 485,1*TTL,2*RS232/RS485）
Ethernet
1* 1000M Ethernet interface
Wi-Fi、 BT
Built-in Wi-Fi,BT5.3 supports dual-band Wi-Fi, single antenna.
4G
4G module holder with built-in MINI PCIE interface, supporting voice calls.
LVDS
1 single/dual LVDS output
eDP
The LCD screen with eDP interface with multiple resolutions can be
HDMI
1 x HDMI OUTPUT , SUPPORT 4096×2160@120Hz
Send RFQ
CX3567 Industrial Motherboard Specifications
| Type | Paramters |
|---|---|
| CPU | Four Cortex-A72+Four Cortex-A53 64-bit CPU，Highest frequency 2.2GHz |
| GPU | ARM Mali G52 MC3 |
| RAM | 4GB( 8GB/16GB Optional ) |
| Memory | 32GB（ 64GB/128GB/256GB Optional） |
| ROM | 4KB EEPROM |
| Resolution | Highest support 4096×2160@120Hz |
| OS | Android14， Linux6.1， Debian12 ，Ubuntu22.04 |
| Play mode | Supports various playback modes such as loop, timer, interrupt, etc. |
| Network | 4G、 Ethernet、support 2.4G/5G dual Wi Fi、support bluetooth 5.3 |
| Video Display | Support BMP、JPEG、 PNG、GIF |
| video display | Support wmv、avi、flv、rm、rmvb、mpeg 、ts、mp4 |
| Picture format | Support BMP、JPEG、 PNG、GIF |
| USB interface | 1*USB3.0 OTG peripheral interface， 1* USB2.0 peripheral interface，4*USB2.0 |
| Mipi Camera | 30pin FPC interface,support 1300W Camera |
| Mipi LCD | 24pin FPC interface,support 2560×1600@60Hz MIPI display |
| Serial port | 6 serial sockets（ 2*RS232,1 个 485,1*TTL,2*RS232/RS485） |
| GPS | External GPS（ optional） |
| Wi-Fi、 BT | Built-in Wi-Fi,BT5.3 supports dual-band Wi-Fi, single antenna. |
| 4G | 4G module holder with built-in MINI PCIE interface, supporting voice calls. |
| Ethernet | 1* 1000M Ethernet interface |
| TF Card | Support |
| LVDS output | 1 single/dual LVDS output |
| eDP output | The LCD screen with eDP interface with multiple resolutions can be directly driven. |
| HDMI output | 1HDMI OUTPUT , SUPPORT 4096×2160@120Hz |
| Audio output | Support left and right channel output, built-in dual 4R/10W and 8R/5W power amplifiers. |
| RTC | Support |
| Timing | Support |
| System | Support USB upgrade |
